Connector End View (C301) - AC OUTLET

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

HYA01 (OG-GN)

16

CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)

2

*

*

Not Used

3

HYA02 (OG-WH)

16

CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)

4

*

*

Not Used

5

RYA03 (BU)

26

CTRL MOD. - DC/AC INVERTER # LED INDICATOR -

6

LYA03 (YE)

26

CTRL MOD. - DC/AC INVERTER # LED INDICATOR +

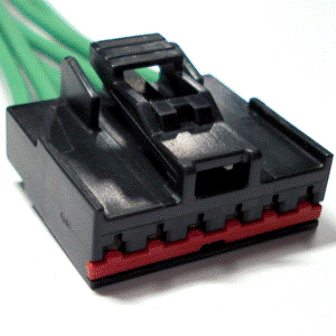

Available Pigtail Kits

Pigtail Kit Part Number

WPT-973

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FNB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses

Inverter - DC to AC

Switch - Dimmer

Switch - Dimmer (Instrument Panel)

Switch - Headlamp

Switch - Headlamp Dimmer
