Connector End View (C289) - AIR INLET MODE DOOR ACTUATOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

LH111 (BN)

26

CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS

2

VH438 (GN)

26

SENSOR - DOOR POSITION RECIRC.

3

RH111 (GY-BU)

22

CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS

4

*

*

Not Used

5

CH207 (BU)

26

CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)

6

CH208 (OG)

26

CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)

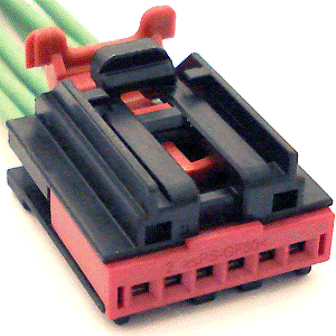

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1049

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-UA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses

Actuator - Door Lock - RH - Front

Motor - Heater A/C Mode Door

Motor - Heater/AC Blend Door

Motor - Heater/AC Inlet Door

Switch - Heated Back Light (Rear Defrost)

Switch - Heated Seat - LH - Rear

Switch - Heated Seat - RH - Front

Switch - Heated Seat - RH - Rear
