Connector End View (C286) - AUTOLAMP/SUNLOAD SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VH417 (YE)

26

SENSOR - SUN LOAD # RIGHT

2

VLF14 (BU)

26

SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +

3

VH416 (VT)

26

SENSOR - SUN LOAD # LEFT

4

GD374 (BK-WH)

20

GROUND - TUNNEL (BC3T)

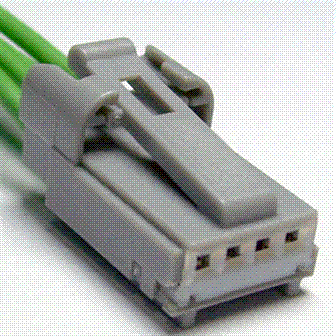

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1013

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-TA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses

Module - Auto Lamps

Sensor - Sunload
