Connector End View (C252) - PASSIVE ANTI-THEFT TRANSCEIVER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CE436 (VT-OG)

22

CTRL MOD. -WAKE UP PCM

2

GD374 (BK-WH)

20

GROUND - TUNNEL (BC3T)

3

VRT24 (YE)

26

TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL

4

VRT23 (VT)

26

TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN)

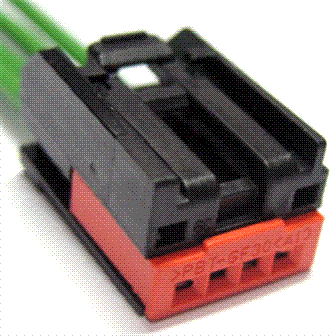

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1139

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-PRC

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses

Connector - Audio Input

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Anti-theft

Module - Power Moonroof

Sensor - Steering Wheel Position

Switch - 4x4 Control

Switch - Clutch Pedal Position

Switch - Deck Lid / Lift Gate Ajar

Switch - Door Lock (LH)

Switch - Door Lock (RH)

Switch - Lift Gate Glass Ajar

Switch - Message Center

Switch - Moon Roof/Sun Roof

Transceiver - Passive Anti-Theft (PATS)
