Connector End View (C251) - DATA LINK CONNECTOR
Connector: C251
Description
DATA LINK CONNECTOR
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VDB13 (BU-GY) |
20 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
4 |
GD374 (BK-WH) |
20 |
GROUND - TUNNEL (BC3T) |
|
|
5 |
GD374 (BK-WH) |
20 |
GROUND - TUNNEL (BC3T) |
|
|
6 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
VDB14 (VT-GY) |
20 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
SBP24 (VT-RD) |
20 |
FUSE - 24 OR CIRCUIT BREAKER |
|

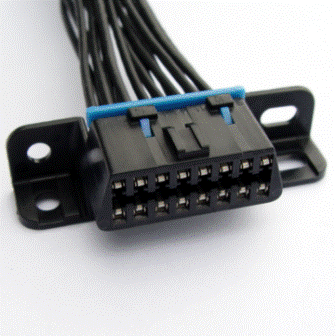

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-615 |
Service Part Number: 3U2Z-14S411-LKA Gauge: 16 Pin material: Tin Cavities: 16 Vehicle Uses Test Connector - Diagnostic |
