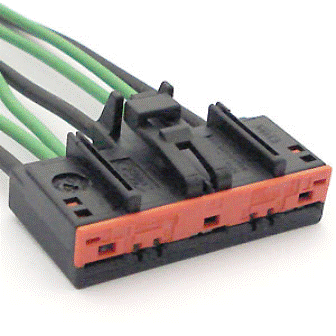

Connector End View (C250) - IGNITION SWITCH
Connector: C250
Description
IGNITION SWITCH
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CDC34 (WH-OG) |
18 |
SWITCH - IGNITION # RUN; START |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CDC41 (WH-BN) |
22 |
SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) |
|
|
4 |
SBP26 (YE-RD) |
18 |
FUSE - 26 OR CIRCUIT BREAKER |
|
|
5 |
CDC30 (BU) |
26 |
SWITCH - IGNITION # KEY IN |
|
|
6 |
CDC33 (VT) |
26 |
SWITCH - IGNITION # RUN; ACCESSORY |
|
|
7 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-957 |
Service Part Number: 3U2Z-14S411-FMAB Gauge: 12 14 Pin material: Tin & Silver Cavities: 7 Vehicle Uses Switch - Ignition |
