Connector End View (C227) - STEERING COLUMN TELESCOPING MOTOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPP22 (GY-BN)

18

CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD

2

VPP17 (VT-BN)

20

SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD)

3

CPP05 (WH-VT)

18

CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON

4

RPP06 (GN)

20

CTRL MOD. - SENSOR ADJUSTABLE PEDAL -

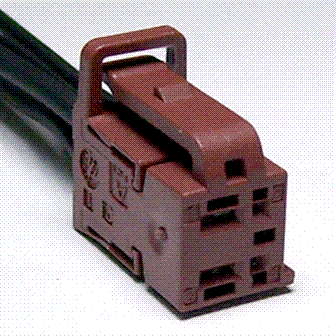

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1191

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AEA

Gauge:

14 18

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses

Motor - Seat Recline

Motor - Steering Column Adjust
