Connector End View (C218D) - CLOCKSPRING

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CHS72 (YE-BU)

16

CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT +

2

RHS72 (YE-GY)

16

CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT -

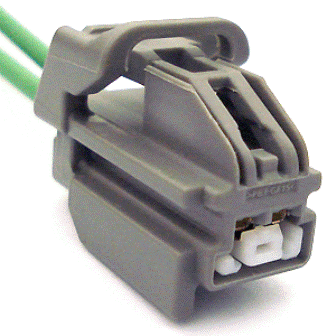

Available Pigtail Kits

Pigtail Kit Part Number

WPT-965

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AEB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Element - Heated Seat

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Heated Seat

Motor - Adjustable Pedal

Motor - Decklid / Liftgate

Sensor - Air Charge Temperature

Sensor - EATC In Car Temperature

Speaker - Subwoofer

Switch - Adjustable Pedal

Switch - Brake Deactivation

Switch - Brake Pressure

Switch - Clutch Pedal Position

Switch - Stop Lamp

Switch - Third Row Power Folding Seat
