Connector End View (C198) - AMBIENT AIR TEMPERATURE (AAT) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VE750 (GN-BU)

18

SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)

2

RE407 (YE-VT)

18

CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)

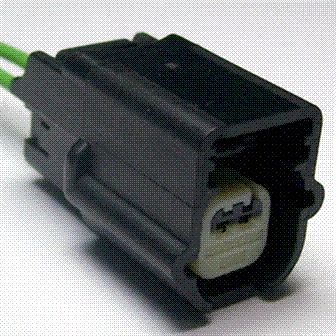

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1306

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AGB

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses

Sensor - Ambient Temp

Sensor - Side Impact
