Connector End View (C192) - Inline
Inline C192
Description
Inline
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 12C508
FEMALE
Harness 14B485
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
VE712 (BU-GY) |
20 |
|
|
2 |
RE405 (GN-WH) |
20 |
12C508 |
|
2 |
RE405 (GN-WH) |
20 |
14B485 |
|

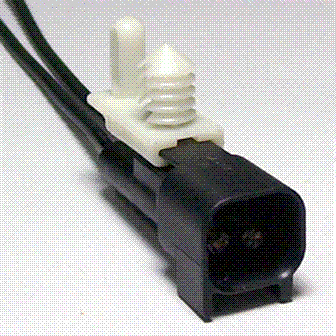

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1186 |
Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt |
