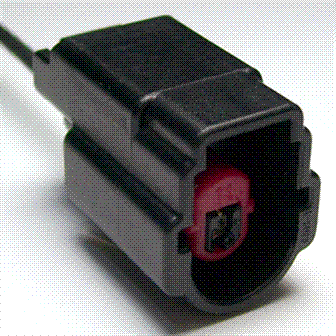

Connector End View (C174) - IGNITION TRANSFORMER CAPACITOR 1

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBK04 (VT)

10

FUSE - 4 OR CIRCUIT BREAKER (VPWR)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1253

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-KB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

1

Vehicle Uses

Capacitor - Ignition/Radio
