Connector End View (C152) - FOG LAMP, LEFT FRONT
Connector: C152
Description
FOG LAMP, LEFT FRONT
Color
BK
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CLF12 (BN-YE) |
20 |
RELAY - FOG LAMPS FRONT |
|
|
2 |
GD123 (BK-GY) |
20 |
GROUND - FENDER FRONT RIGHT |
|

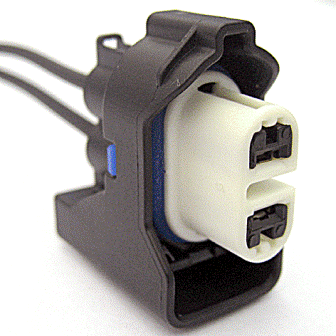

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-904 |
Service Part Number: 8U2Z-14S411-GA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - Ash Tray Lamp - Fog/Driving |
