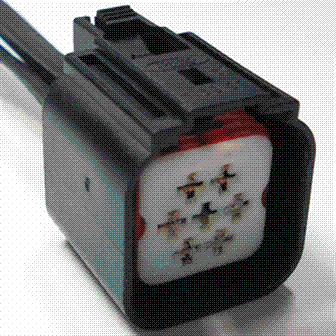

Connector End View (C151) - SIDE LAMP, LEFT FRONT
Connector: C151
Description
SIDE LAMP, LEFT FRONT
Color
BK
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
GD123 (BK-GY) |
20 |
GROUND - FENDER FRONT RIGHT |
|
|
7 |
CLS30 (VT-WH) |
20 |
RELAY - PARK LAMP |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1007 |
Service Part Number: 3U2Z-14S411-EVB Gauge: 14 Pin material: Tin (greased) Cavities: 7 Vehicle Uses Lamp - Headlamp - High/Low Beam Lamp - Side Marker |
