Connector End View (C150) - WHEEL SPEED SENSOR, LEFT FRONT

Connector: C150

Description

WHEEL SPEED SENSOR, LEFT FRONT

Color

Harness

14290

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT
2	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT

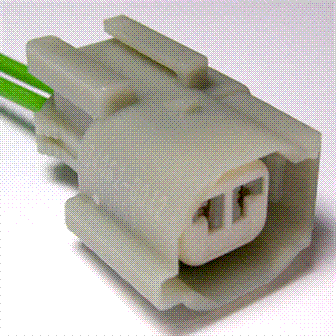

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Lamp - Running Board

Sensor - Knock

Sensor - Speed

Sensor - Water in Fuel
