Connector End View (C149) - BRAKE BOOSTER VACUUM SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VCA36 (YE-GN)

20

CTRL MOD. - BRAKE BOOSTER CONTROL VALVE +

2

RCA36 (GY-OG)

20

CTRL MOD. - BRAKE BOOSTER CONTROL VALVE -

3

LCA37 (YE-OG)

20

CTRL MOD. - SENSOR BRAKE VACUUM +

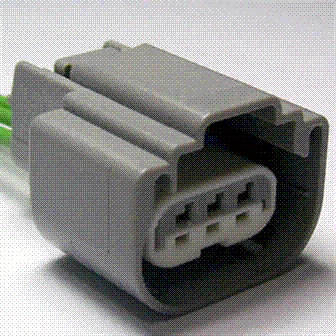

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1337

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AB

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses

Sensor - Brake Booster Travel

Sensor - Brake Pressure

Sensor - Brake Vacuum

Sensor - Manifold Absolute Pressure (MAP)

Sensor - Occupant Classification
