Connector End View (C142) - HEATED OXYGEN SENSOR (HO2S) #12

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBK02 (GN)

18

FUSE - 2 OR CIRCUIT BREAKER (VPWR)

2

CE233 (WH-OG)

18

CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)

3

RE405 (GN-WH)

18

CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

4

VE731 (YE-GN)

18

SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)

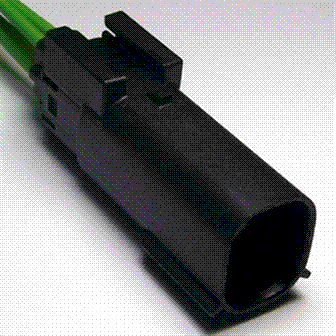

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1288

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ZA

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses

Sensor - Catalyst Monitor

Sensor - O2 (HEGO/ EGO)
