Connector End View (C138) - WASHER FLUID LEVEL SWITCH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CMC20 (VT)

22

SWITCH - LOW LEVEL WASHER FLUID

2

GD123 (BK-GY)

18

GROUND - FENDER FRONT RIGHT

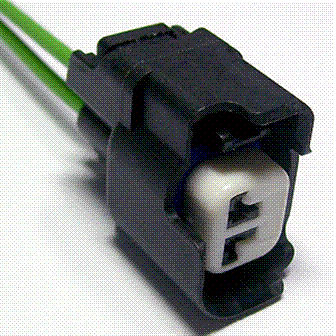

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1217

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AXA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses

Lamp - Rear Park

Lamp - Reverse

Lamp - Side Marker

Sensor - Washer Fluid level

Switch - Windshield Wiper / Washer
