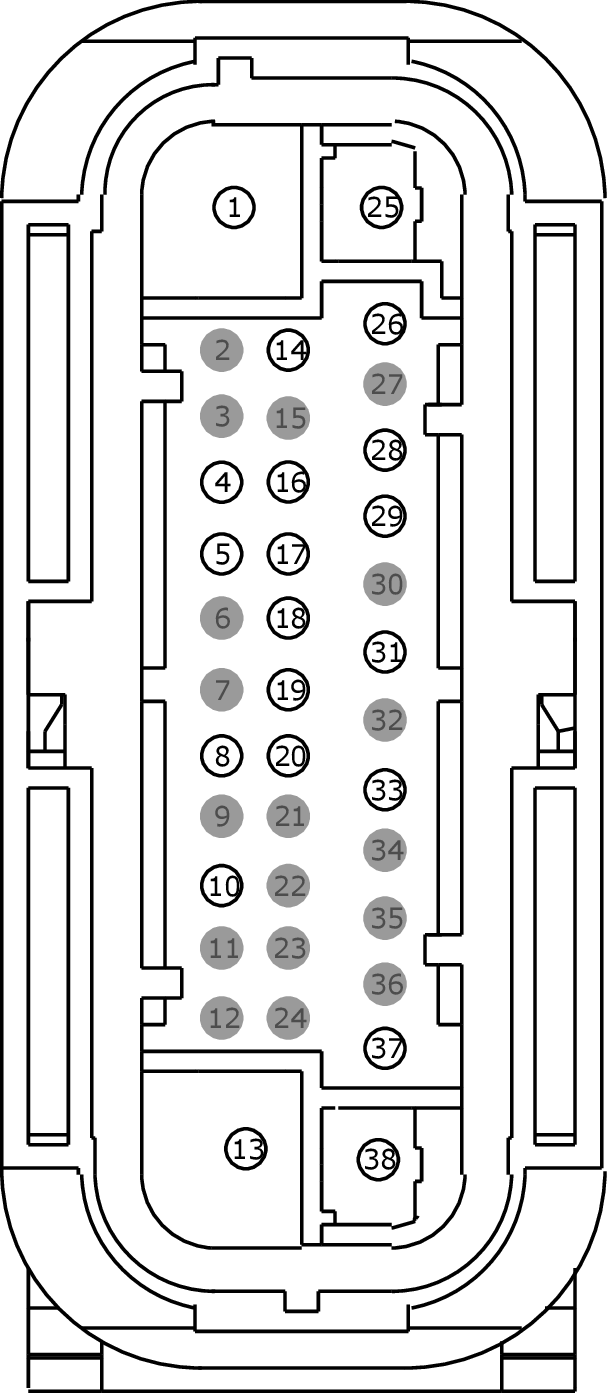

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

SBB05 (GY-RD)

10

FUSE - 5 OR CIRCUIT BREAKER

2

*

*

Not Used

3

*

*

Not Used

4

RCA19 (VT)

20

CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT

5

LCA37 (YE-OG)

20

CTRL MOD. - SENSOR BRAKE VACUUM +

6

*

*

Not Used

7

*

*

Not Used

8

RCA17 (YE)

20

CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT

9

*

*

Not Used

10

RCA36 (GY-OG)

20

CTRL MOD. - BRAKE BOOSTER CONTROL VALVE -

11

*

*

Not Used

12

*

*

Not Used

13

GD120 (BK-GN)

10

GROUND - FENDER FRONT LEFT

14

VDB05 (WH)

20

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW

15

*

*

Not Used

16

VCA05 (GY-VT)

20

SENSOR - WHEEL SPEED RIGHT FRONT

17

VCA06 (WH-OG)

20

SENSOR - WHEEL SPEED RIGHT REAR

18

RCA18 (BN-GN)

20

CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR

19

VCA03 (VT-WH)

20

SENSOR - WHEEL SPEED LEFT FRONT

20

VCA24 (GN-OG)

20

CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW

21

*

*

Not Used

22

*

*

Not Used

23

*

*

Not Used

24

*

*

Not Used

25

SBB43 (BU-RD)

12

FUSE - 43 OR CIRCUIT BREAKER

26

VDB04 (WH-BU)

20

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH

27

*

*

Not Used

28

CBB89 (VT-GY)

20

FUSE - 89 OR CIRCUIT BREAKER

29

RCA20 (BN)

20

CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR

30

*

*

Not Used

31

VCA04 (BU-OG)

20

SENSOR - WHEEL SPEED LEFT REAR

32

*

*

Not Used

33

VCA23 (BU-WH)

20

CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS HIGH

34

*

*

Not Used

35

*

*

Not Used

36

*

*

Not Used

37

VCA36 (YE-GN)

20

CTRL MOD. - BRAKE BOOSTER CONTROL VALVE +

38

GD120 (BK-GN)

12

GROUND - FENDER FRONT LEFT
