Connector End View (C131) - HORN
Connector: C131
Description
HORN
Color
BK
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD123 (BK-GY) |
14 |
GROUND - FENDER FRONT RIGHT |
|
|
2 |
SRH01 (YE-RD) |
14 |
RELAY - HORN |
|

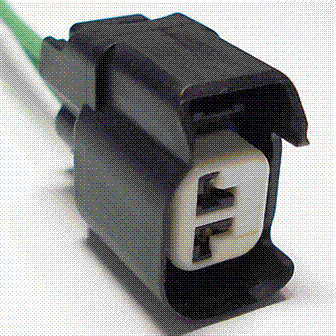

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1051 |
Service Part Number: 5U2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector Horn Switch - Backup Lamp Switch - Hood Ajar |
