Connector End View (C129) - INTAKE AIR TEMPERATURE (IAT) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VE740 (VT-GY)

20

SENSOR - INTAKE AIR TEMPERATURE (IAT)

2

RE407 (YE-VT)

20

CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)

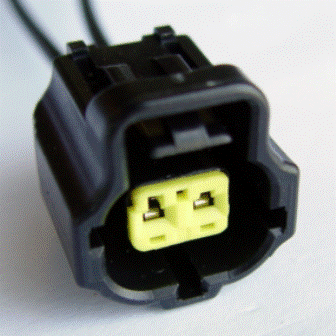

Available Pigtail Kits

Pigtail Kit Part Number

WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Resistor - Daytime Running Lamp (DRL)

Sensor - Air Charge Temperature

Sensor - Brake Pressure

Solenoid - Canister Vent

Switch - Brake Pressure
