Connector End View (C128) - MASS AIRFLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR
Connector: C128
Description
MASS AIRFLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR
Color
BK
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
VE740 (VT-GY) |
22 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
|
|
3 |
CBB67 (GN-BN) |
20 |
FUSE - 67 OR CIRCUIT BREAKER |
|
|
4 |
RE320 (BU) |
22 |
CTRL MOD. - POWERTRAIN # MASS AIRFLOW SEN. LH BANK OR 1ST BANK (SIGRTN) |
|
|
5 |
VE807 (YE-VT) |
22 |
SENSOR - MASS AIRFLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) |
|
|
6 |
* |
* |
Not Used |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1241 |

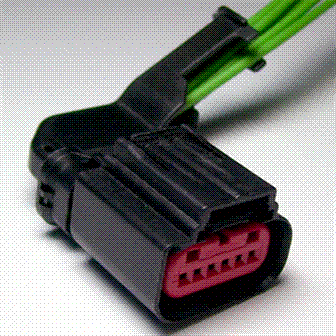

Service Part Number: 3U2Z-14S411-FJAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Control - Electronic Throttle Sensor - Mass Air Flow |
