Connector End View (C125) - WINDSHIELD WIPER MOTOR
Connector: C125
Description
WINDSHIELD WIPER MOTOR
Color
BK
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CRW15 (BN-WH) |
18 |
CTRL MOD. - FRONT WIPER HIGH |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
GD123 (BK-GY) |
18 |
GROUND - FENDER FRONT RIGHT |
|
|
4 |
VDN05 (YE-GY) |
18 |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
GD120 (BK-GN) |
12 |
GROUND - FENDER FRONT LEFT |
|
|
7 |
CRW14 (BU-WH) |
16 |
CTRL MOD. - FRONT WASHER |
|
|
8 |
CRW03 (VT-WH) |
12 |
RELAY - FRONT WIPER |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
CRW02 (GY-BU) |
18 |
CTRL MOD. - REAR WIPER |
|
|
12 |
CRW34 (BU-BN) |
18 |
CTRL MOD. - REAR WASHER |
|

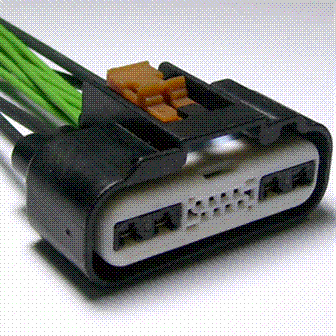

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1316 |
Service Part Number: BU2Z-14S411-AB Gauge: 14 20 Pin material: Tin & Silver Cavities: 12 Vehicle Uses Motor - Windshield Wiper |
