Connector End View (C119) - FUEL INJECTION PUMP
Connector: C119
Description
FUEL INJECTION PUMP
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RE226 (GN-VT) |
14 |
FUEL VOLUME REGULATOR RETURN (FVRRTN) |
|
|
2 |
CE226 (YE-VT) |
14 |
FUEL VOLUME REGULATOR (FVR) |
|

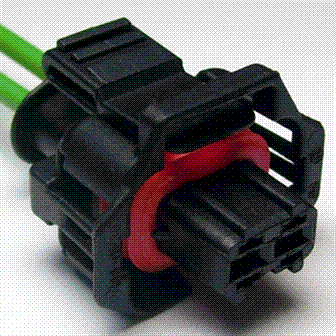

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1302 |
Service Part Number: CU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector Pump - Fuel Injection Solenoid - Fuel Volume Regulator Control |
