Description And Operation: Overview

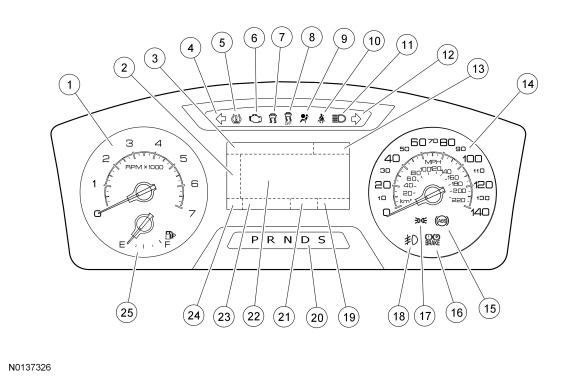

Base IPC
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | Main menu navigation |
| 3 | - | Main menu text display |
| 4 | - | LH turn indicator |
| 5 | - | TPMS warning indicator |
| 6 | - | MIL |
| 7 | - | Stability-traction control indicator (sliding car icon) |
| 8 | - | Stability-traction control disabled indicator (sliding car OFF icon) |
| 9 | - | Air bag warning indicator |
| 10 | - | Safety belt warning indicator |
| 11 | - | High beam indicator |
| 12 | - | RH turn indicator |
| 13 | - | Cruise control display area |
| 14 | - | Speedometer |
| 15 | - | ABS warning indicator |
| 16 | - | Brake warning indicator |
| 17 | - | Lights on indicator |
| 18 | - | Fog lamp indicator |
| 19 | - | Odometer |
| 20 | - | PRNDL display |
| 21 | - | Compass display |
| 22 | - | Message center display area |
| 23 | - | Message center indicator display area |
| 24 | - | Select shift display area |
| 25 | - | Fuel gauge |

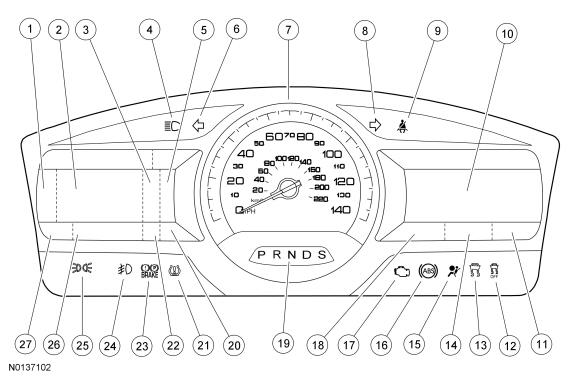

Optional IPC
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Menu navigation icon |
| 2 | - | LH message center display (also displays the analog style tachometer and select shift display [if equipped] and AWD gauge [if equipped]) |
| 3 | - | Adaptive cruise control display (if equipped) |
| 4 | - | High beam indicator |
| 5 | - | Fuel gauge, fuel gauge/tachometer or fuel gauge/temperature gauge display |
| 6 | - | LH turn indicator |
| 7 | - | Speedometer |
| 8 | - | RH turn indicator |
| 9 | - | Safety belt warning indicator |
| 10 | - | RH multimedia display area |
| 11 | - | Clock display |
| 12 | - | Stability-traction control disabled indicator (sliding car OFF icon) |
| 13 | - | Stability-traction control indicator (sliding car icon) |
| 14 | - | Compass display |
| 15 | - | Air bag warning indicator |
| 16 | - | ABS warning indicator |
| 17 | - | MIL |
| 18 | - | Outside air temperature display |
| 19 | - | PRNDL display |
| 20 | - | Select shift display area |
| 21 | - | TPMS warning indicator |
| 22 | - | Cruise control message center indicator (fixed) |
| 23 | - | Brake warning indicator |
| 24 | - | Fog lamp indicator |
| 25 | - | Lights on indicator |
| 26 | - | Message center indicator display area (rotating) |
| 27 | - | Odometer |
The base IPC is available with a single LCD screen. The optional IPC is available with dual RH and LH LCD screens. The single display screen and the LH display screen contain the message center information. The RH display screen displays multimedia information (audio, phone and navigation), as well as items such as vehicle direction, outside air temperature and time.
Refer to the appropriate for the procedure.
Informational Indicators/Warning Indicators
Informational indicators provide information to the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
Message Center Indicators
Message center indicators illuminate in the message center and replace the typical informational or warning indicator using the same iconic representation. When multiple warnings exist, the message center indicators cycle through each display until the condition has been corrected unless the message center indicator is in a fixed position. The message center indicators include:
- Charging system
- Cruise control (fixed location)
- Door/liftgate ajar
- Engine oil pressure
- Engine over-temperature
- Grade assist
- Low fuel
- Low washer fluid
- Powertrain malfunction (wrench)
Networked Message Inputs
Module messaging has increased over time and has become the standard for sending and receiving information required to operate the IPC. The majority of the inputs required to operate the IPC are received over the CAN.
Hardwired Inputs
The IPC requires hardwired inputs from components that are not on the HS-CAN or MS-CAN. These components are required for specific IPC functions or gateway requirements. Refer to Gateway Function in Multifunction Electronic Modules .
The hardwired inputs are provided by:
- Fuel pump assembly (primary fuel level input)
- Fuel level sensor (secondary fuel level input)
- Park detect switch (part of the floor shifter assembly)
- Washer fluid level switch
