Fiesta ST
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Parking Aid System
Parking Aid System

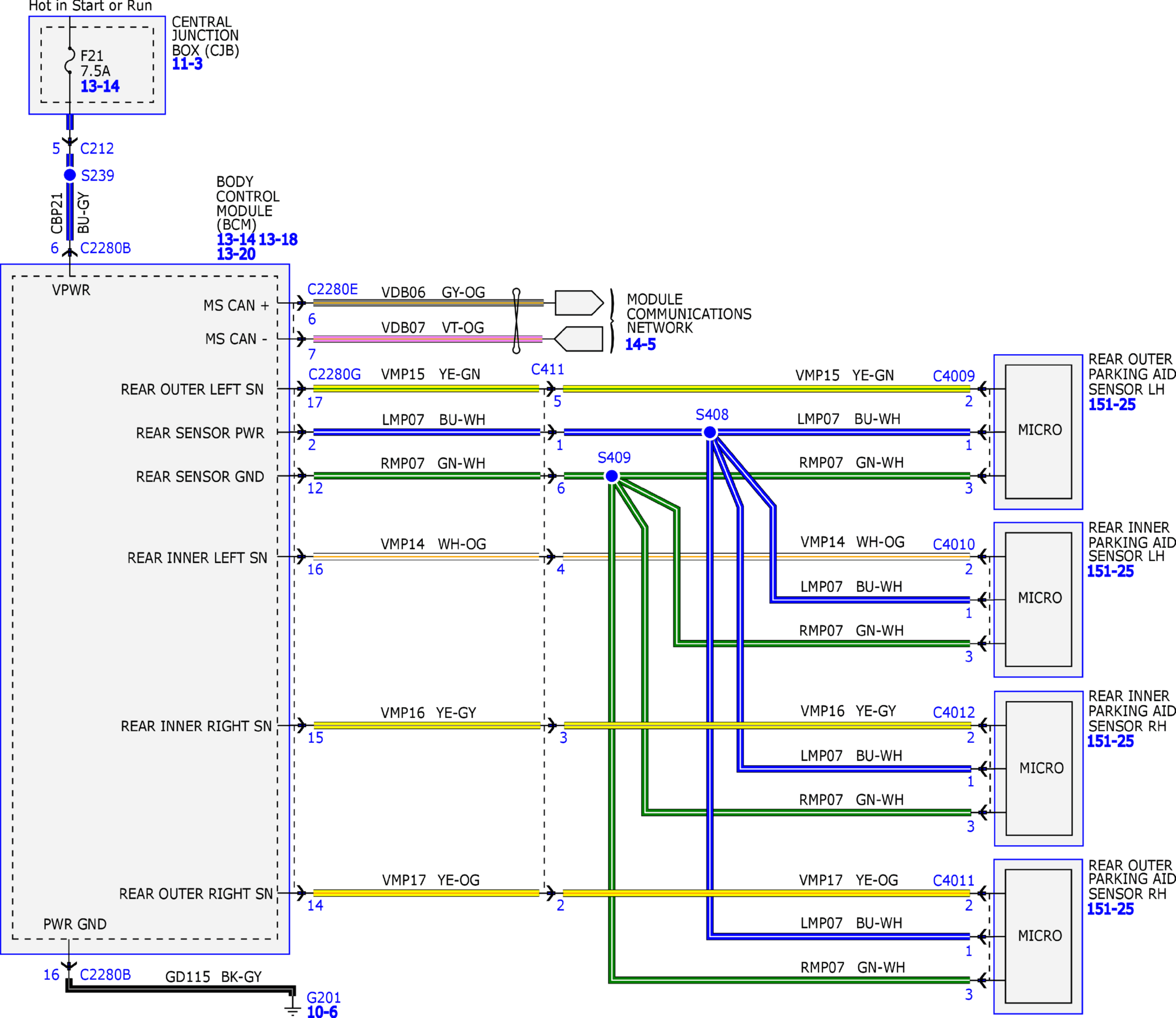

Fig 1: Parking Aid System Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

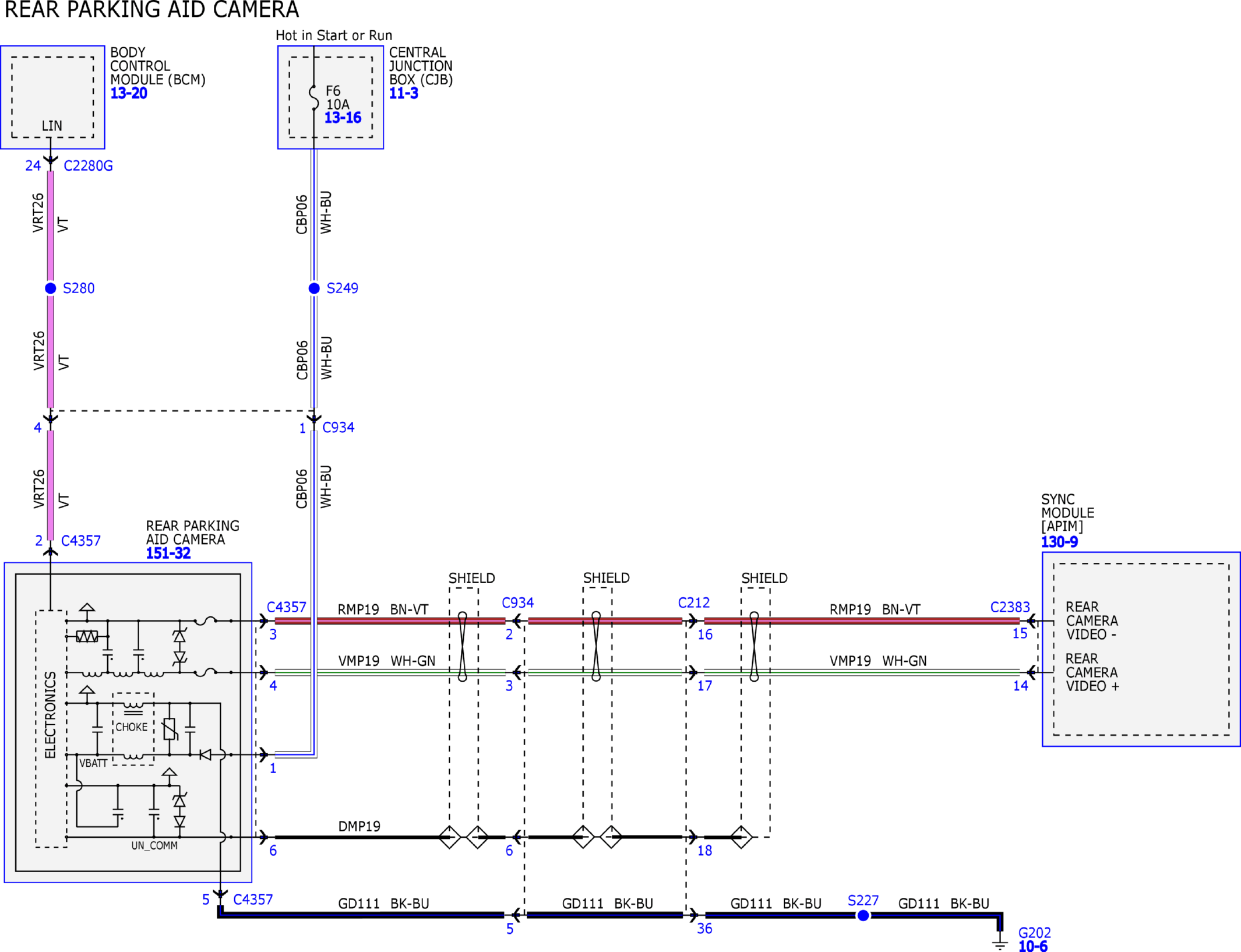

Fig 2: Parking Aid System Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
