Brake Master Cylinder: Removal

All vehicles

• 1.

  Remove the battery tray. REFER to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma Refer to: Battery Tray - 1.0L EcoBoost (90kW/120PS)/1.6L EcoBoost (132kW/180PS) - Sigma

• 2.

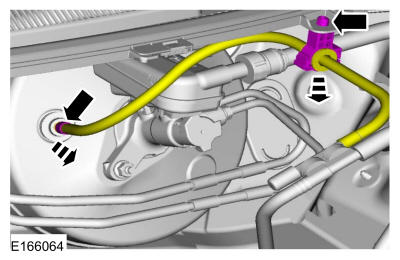

  Disconnect the vacuum tube from the brake booster and detach the routing clip.

Courtesy of FORD MOTOR COMPANY

• 3.

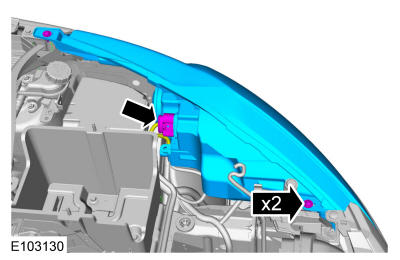

  Disconnect the electrical connector, remove the screws and the headlamp assembly.

Courtesy of FORD MOTOR COMPANY

• 4.

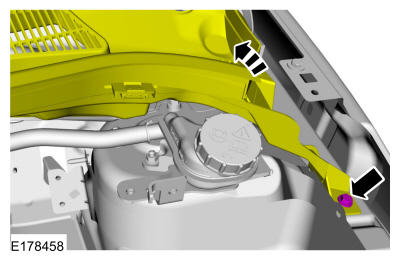

  Remove the bolt and position the cowl vent panel upward.

  Torque

  : 19 lb.in (2.2 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.

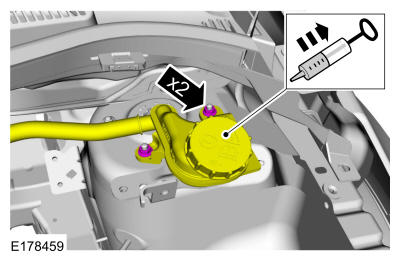

  Using a suitable suction device, remove the brake fluid from the remote reservoir and then remove the nuts.

  Torque

  : 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

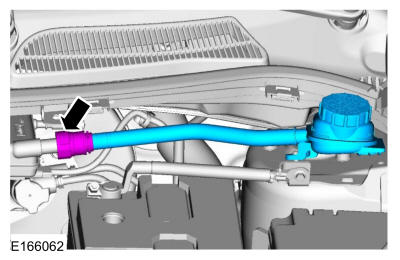

  Release the coupling and remove the remote brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY

Vehicles with manual transmission

• 7.

  Release the coupling and disconnect the clutch master cylinder tube.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 8.

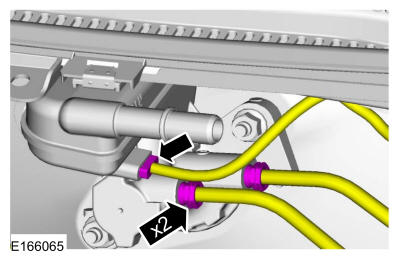

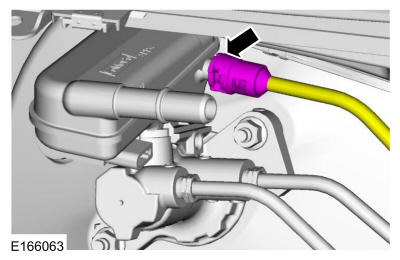

  Disconnect the brake fluid level sensor electrical connector and the brake tube fittings.

  Torque

  : 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

• 9.


  NOTE: Before installing the master cylinder make sure a new brake booster-to-master cylinder O-ring is in place and the mating faces are clean.

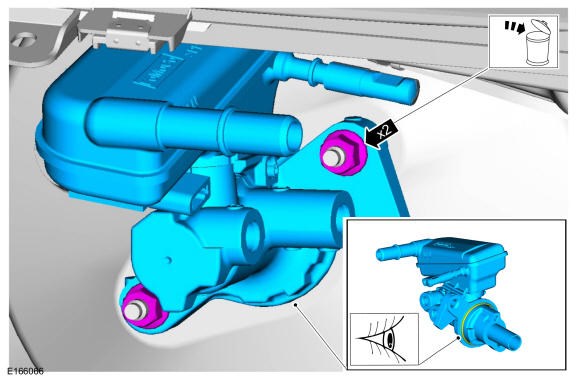

  Remove the nuts and the brake master cylinder. Discard the nuts.

  Torque

  : 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

• 10.

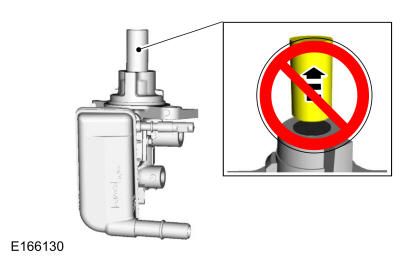

  NOTE: Take extra care when handling the component.

  Do not remove the brake master cylinder piston extension.
