Shock Absorber and Spring Assembly: Installation

1.

Position the shock absorber assembly.

Courtesy of FORD MOTOR COMPANY

NOTE: Align the index marks made during disassembly.

2.
Compress the spring until the tension is released from the shock absorber.
General Equipment: Spring Compressor.

Courtesy of FORD MOTOR COMPANY

NOTE: Use the hex-holding feature to prevent the shock rod from turning while installing the nut.

3.
While holding the shock rod, install the new shock absorber and the shock rod nut.
- Tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with dynamic suspension, the RH and LH Continuous Controlled Damping (CCD) shock absorber assemblies are unique and cannot be used on opposite sides of the vehicle.

4.

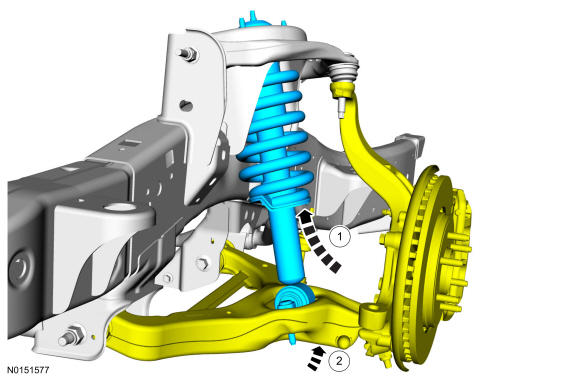

Install the shock absorber and spring assembly and position the lower arm and wheel knuckle assembly up.

Courtesy of FORD MOTOR COMPANY

5.

Install the 3 new shock absorber and spring assembly upper nuts.
- Tighten to 63 Nm (46 lb-ft).

Courtesy of FORD MOTOR COMPANY

6.

Install the new upper ball joint nut.
- Tighten to 115 Nm (85 lb-ft).

Courtesy of FORD MOTOR COMPANY

7.

Install the 2 new lower shock absorber nuts.
- Tighten to 90 Nm (66 lb-ft).

Courtesy of FORD MOTOR COMPANY

NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

8.
Install the new stabilizer bar link upper nut.
- Tighten to 80 Nm (59 lb-ft).

Courtesy of FORD MOTOR COMPANY

9.
- 1.

  Position the wheel speed sensor wiring and install the wheel seed sensor bracket bolt.
  - Tighten to 12 Nm (106 lb-in).
- 2.

  Position the brake hose bracket and install the brake hose bracket bolt.
  - Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

10.

NOTE: If equipped with dynamic suspension.

NOTE: RH attachment locations shown in illustration, LH attachment locations similar. Actual attachment locations may vary.

Connect the shock absorber and spring assembly wiring harness clips.

Courtesy of FORD MOTOR COMPANY

11.

NOTE: If equipped with dynamic suspension.

NOTE: RH connector shown in illustration, LH connector similar. Actual connector locations may vary.

Connect the shock absorber and spring assembly electrical connector.

Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with dynamic suspension.

12.
Position the height sensor arm bracket and install the height sensor arm bracket screw.
- Tighten to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY

13.

Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.
- Tighten to 115 Nm (85 lb-ft).

Courtesy of FORD MOTOR COMPANY

14.

Install the wheel and tire. Refer to Wheels and Tires .

15.

If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
