Ball Joint - Lower
>>
Removal
Ball Joint - Lower: Removal
1.
Remove the wheel knuckle. Refer to
Wheel Knuckle
.
2.
Remove and discard the lower ball joint snap ring.
Courtesy of FORD MOTOR COMPANY
3.

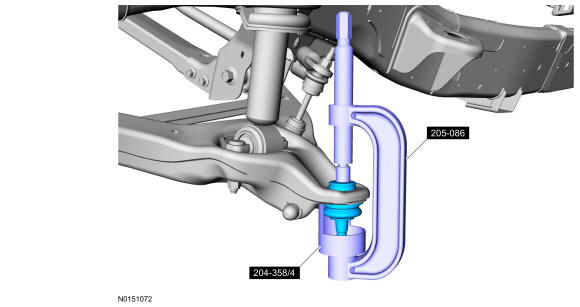

Using Special Tool(s): Installer/Remover, C-Frame and Screw 205-086. Remover, Ball Joint 204-358/4, remove the lower ball joint.
Courtesy of FORD MOTOR COMPANY
