Adjustable Pedals Control Switch: Removal

NOTE: Removal steps may include installation details.

1. 1.

   Remove the steering column shrouds. Refer to Steering Column

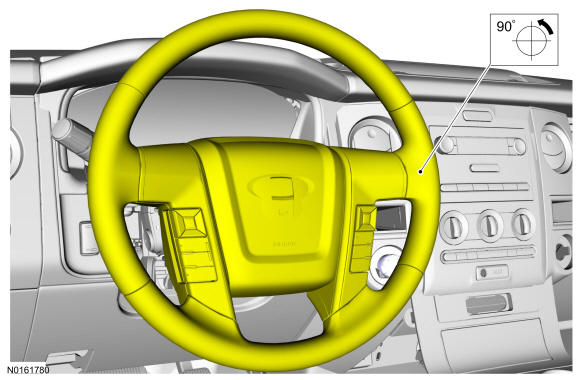

1. 2.

   Rotate the steering wheel 90 degrees counter clockwise to access the adjustable pedals control switch screw and locking tabs.

Courtesy of FORD MOTOR COMPANY

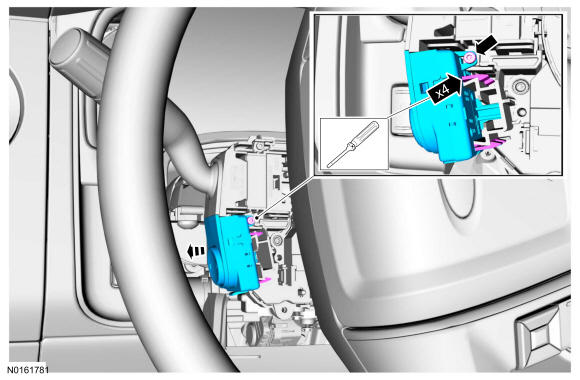

1. 3.

   Remove the screw, carefully disengage the 4 control switch locking tabs and remove the adjustable pedals control switch.
   • To install, tighten to 3 Nm (27 lb-in).

Courtesy of FORD MOTOR COMPANY
