Fuel System Pressure Release

Pressure release

• 1.


  WARNING: Before beginning any service procedure in this article, refer to Health And Safety Precautions . Failure to follow this instruction may result in serious personal injury.

  Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

• 2.


  NOTE: The FPDM is located under the carpet below the RH rear seat.

  Remove the RH rear seat frame arm cover.

Courtesy of FORD MOTOR COMPANY

• 3.


  NOTE: LH side shown, RH side similar.

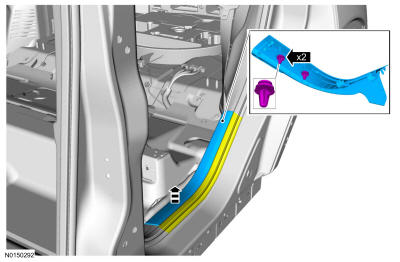

  Position aside the rear door weather-strip, release the clips and remove the rear door scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY

• 4.

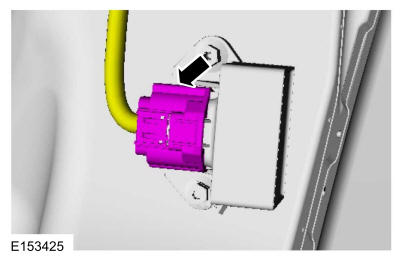

  Disconnect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 5.


  NOTE: On vehicles equipped with Gasoline Turbocharged Direct Injection (GTDI), running the engine with the FPDM disconnected will remove most of the pressure from both the low and high pressure sides of the system.

  Start the engine and allow it to idle until the engine stalls.

• 6.

  Turn the ignition switch to the off position.

• 7.

  When the fuel system service is complete, reconnect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 8.

  Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.
