Turbocharger - Component Location

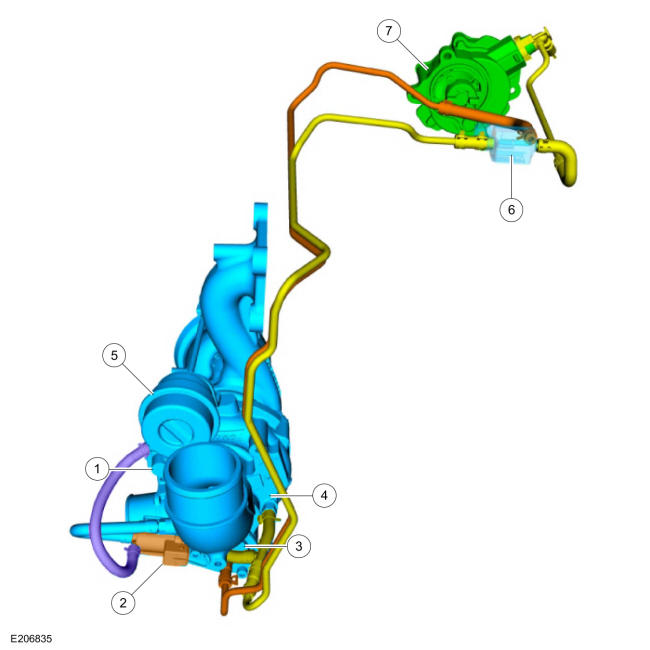

2.0L EcoBoost Turbocharger
| Item | Description |
|---|---|
| 1 | Turbocharger - 6K682 |
| 2 | Wastegate control valve solenoid - (part of 6K682) |
| 3 | Turbocharger bypass valve - (part of 6K682) |
| 4 | Pressure side of compressor |
| 5 | Turbocharger wastegate activator - 9K378 (part of 9961) |
| 6 | Turbocharger bypass solenoid - 9K378 (part of 9961) |
| 7 | Vacuum pump assembly - 2A451 |

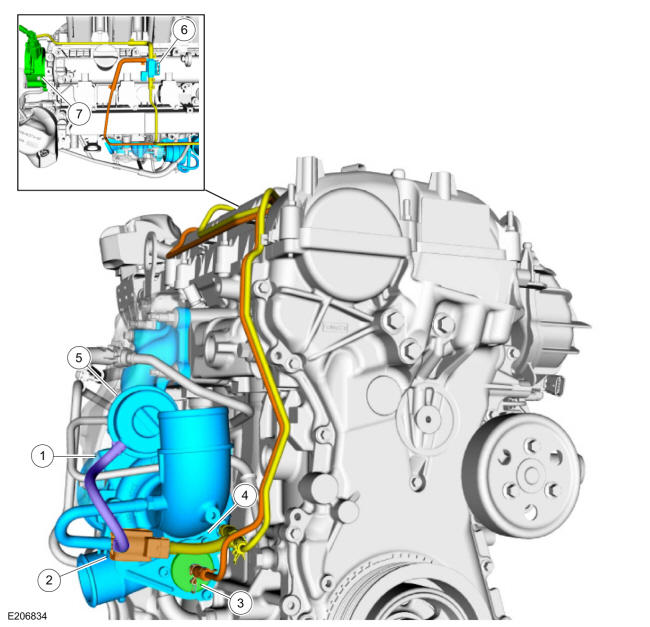

2.0L EcoBoost Turbocharger Controls
| Item | Description |
|---|---|
| 1 | Turbocharger - 6K682 |
| 2 | Wastegate control valve solenoid - (part of 6K682) |
| 3 | Turbocharger bypass valve - (part of 6K682) |
| 4 | Pressure side of compressor |
| 5 | Turbocharger wastegate actuator - (part of 6K682) |
| 6 | Turbocharger bypass solenoid - 9K378 (part of 9961) |
| 7 | Pump assembly vacuum - 2A451 |
