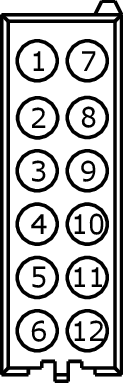

Connector End View (C4014B) - PARKING AID MODULE
Connector: C4014B
Description
PARKING AID MODULE
Color
BK
Harness
14014
Base Part #
15K866
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RMP06 (YE-OG) |
22 |
CTRL MOD. - PARKING AID # SENSORS FRONT - |
|
|
2 |
LMP06 (VT-GY) |
22 |
CTRL MOD. - PARKING AID # SENSORS FRONT + |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
VMP11 (BU-GN) |
22 |
SENSOR - PARKING AID # FRONT # (LEFT OUTER) |
|
|
6 |
VMP10 (WH-BU) |
22 |
SENSOR - PARKING AID # FRONT # (LEFT INNER) |
|
|
7 |
VMP12 (BU-GY) |
22 |
SENSOR - PARKING AID # FRONT # (RIGHT INNER) |
|
|
8 |
VMP13 (BU-OG) |
22 |
SENSOR - PARKING AID # FRONT # (RIGHT OUTER) |
|
|
9 |
VMP20 (GY-OG) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE |
|
|
10 |
VMP21 (WH-BN) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|

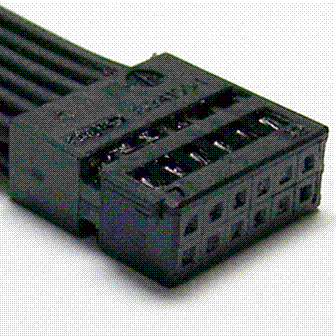

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1178 |
Service Part Number: BU2Z-14S411-YA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses Module - Reverse Park Aid (RPA) |
