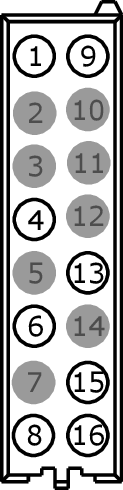

Connector End View (C4014A) - PARKING AID MODULE
Connector: C4014A
Description
PARKING AID MODULE
Color
BK
Harness
14014
Base Part #
15K866
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBR01 (BU) |
22 |
FUSE - 1 OR CIRCUIT BREAKER |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
CMP18 (GN-BN) |
22 |
SWITCH - PARKING AID |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
GD152 (BK-BU) |
22 |
GROUND - PILLAR D RIGHT # 2ND POINT (OBSOLETE) |
|
|
9 |
CMP31 (WH-VT) |
22 |
CTRL MOD. - ACTIVE PARK ASSIST (AUTOPARK) # INDICATOR STATUS |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
CMP02 (GN-BU) |
22 |
CTRL MOD. - PARKING AID # INDICATOR STATUS |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
16 |
CMP32 (GN) |
22 |
SWITCH - ACTIVE PARK ASSIST (AUTOPARK |
|

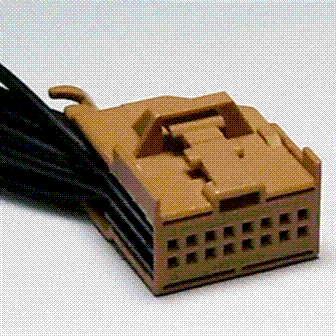

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1189 |
Service Part Number: BU2Z-14S411-ZA Gauge: 18 Pin material: Tin (greased) Cavities: 16 Vehicle Uses Module - Reverse Park Aid (RPA) |
