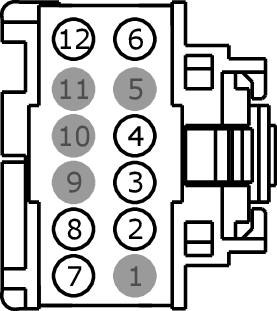

Connector End View (C2114) - INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY
Connector: C2114
Description
INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
CMP32 (GN) |
22 |
SWITCH - PARKING AID |
|
|
3 |
CMP18 (GN-BN) |
26 |
SWITCH - PARKING AID |
|
|
4 |
CPR63 (GY-YE) |
26 |
SWITCH - POWER LIFTGATE # OPEN/CLOSE |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
VLN04 (VT-GY) |
22 |
SWITCH - IP/SWITCH ILLUMINATION |
|
|
7 |
CMP02 (GN-BU) |
22 |
CTRL MOD. - PARKING AID # INDICATOR STATUS |
|
|
8 |
CMP31 (WH-VT) |
26 |
CTRL MOD. - PARKING AID # INDICATOR STATUS |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
GD133 (BK) |
22 |
GROUND - COWL SIDE/PILLAR A LEFT (6L2T) |
|

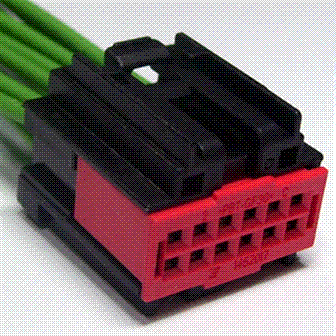

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1360 |
Service Part Number: 4U2Z-14S411-MB Gauge: 20 Pin material: Silver Cavities: 12 Vehicle Uses Switch - Center Stack (Multipurpose) Switch - Multifunction |
