Remote Brake Fluid Reservoir: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

1.

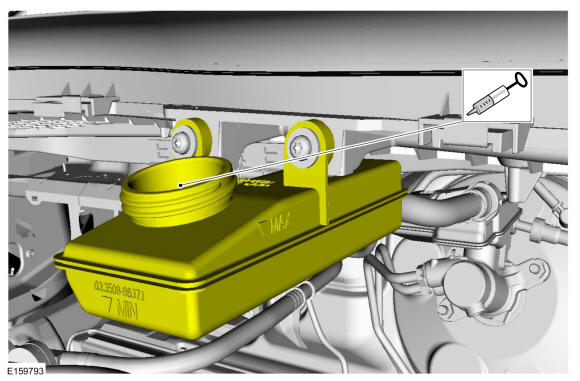

Using a suitable suction device, remove the brake fluid from the remote reservoir.

Courtesy of FORD MOTOR COMPANY

2.

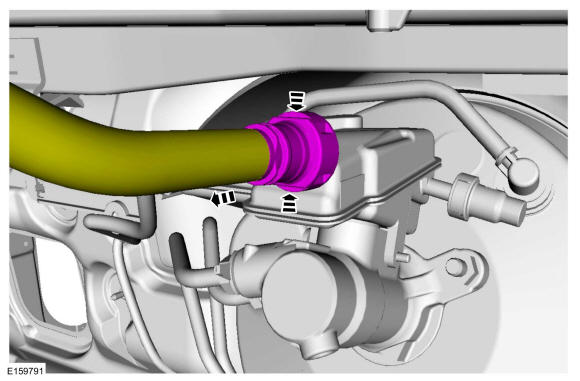

Release the coupling and disconnect the remote reservoir tube from the brake fluid reservoir.

Courtesy of FORD MOTOR COMPANY

3.

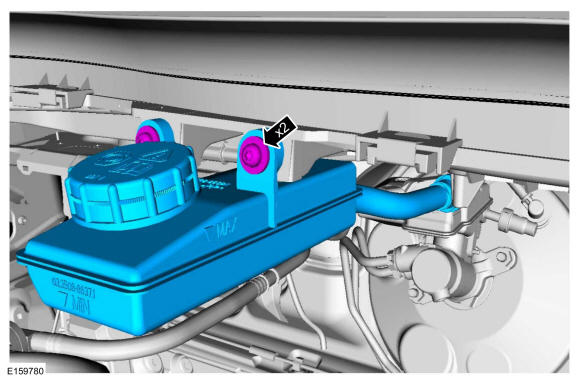

Remove the screws and the remote brake fluid reservoir.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
