Brake Pedal and Bracket: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the accelerator pedal. Refer to: Accelerator Pedal .

2.

NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. The switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch .

3.

Detach the harness retainers and position the wiring aside.

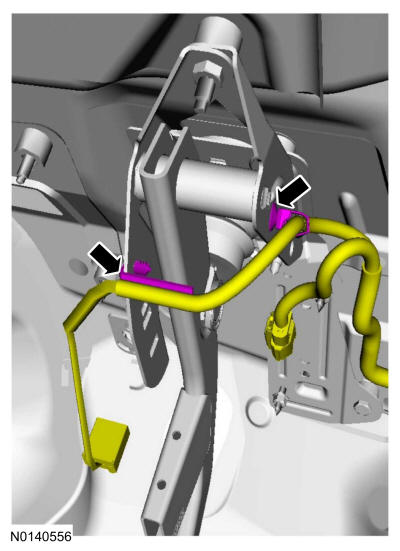

GFD48315

Courtesy of FORD MOTOR COMPANY

4.

Remove and discard the clevis pin. Remove the nuts, bolts and the brake pedal and bracket.
Torque: 17 lb.ft (23 Nm)

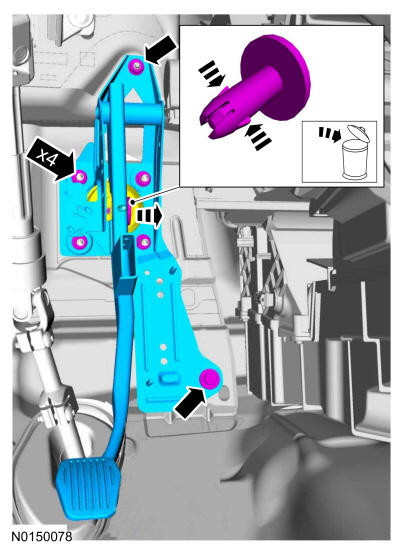

GFD48316
