Brake Master Cylinder: Removal
NOTE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the battery tray. Refer to: Battery Tray .
- 4.NOTE: Make sure that all openings are sealed.

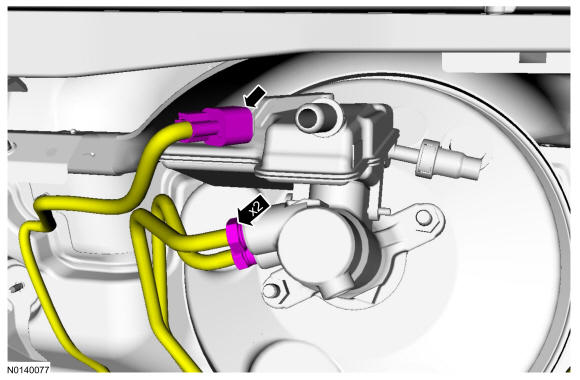

Disconnect the brake fluid level sensor electrical connector and the brake tube fittings.
Torque: 18 lb.ft (25 Nm)
