Brake Fluid Reservoir
>>
Removal
Brake Fluid Reservoir: Removal
NOTE:
Removal steps in this procedure may contain installation details.
1.
Remove the brake master cylinder. Refer to:
Brake Master Cylinder
.
2.

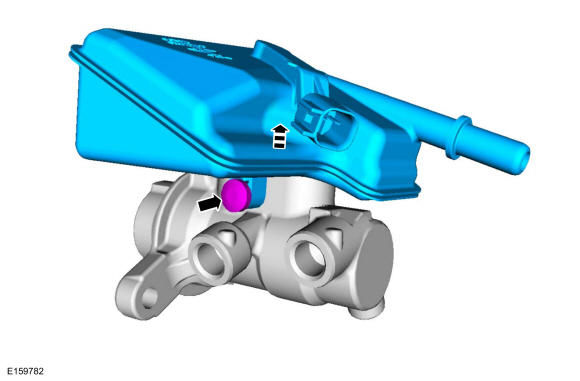

Remove the pin and the brake fluid reservoir.
Courtesy of FORD MOTOR COMPANY
3.

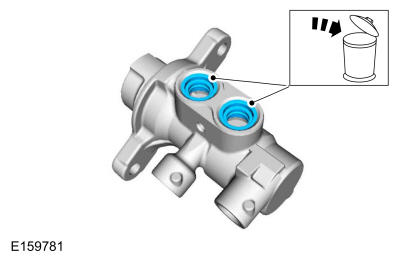

Remove and discard the brake fluid reservoir seals.
Courtesy of FORD MOTOR COMPANY
