Description And Operation
>>
Parking Aid - Component Location
>>

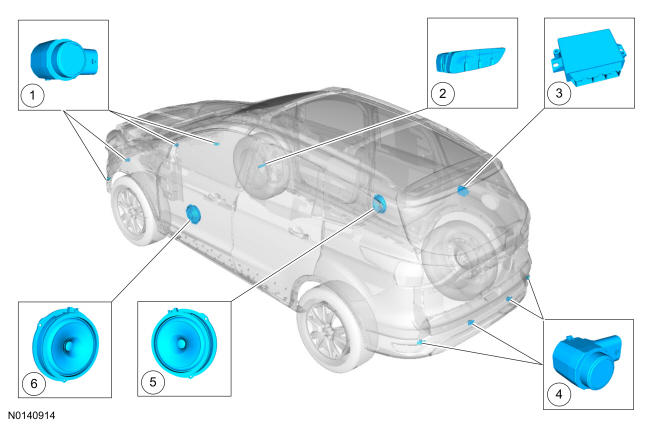

Component Location - Audible Parking Aid
Component Location - Audible Parking Aid
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Front parking aid sensors (if equipped)
2
Parking aid disable switch (if equipped)
3
PAM
4
Rear parking aid sensors
5
Rear speakers (part of audio system)
6
Front speakers (part of audio system)
