Turbocharger RH: Removal

NOTE: Whenever the turbocharger air intake system components are removed, always cover the open ports to protect them from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All of the components should be inspected and cleaned, if needed, prior to installation or reassembly.

NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove the engine appearance cover retainers and then remove the engine appearance cover.

GFD19564

Courtesy of FORD MOTOR COMPANY

3.

Remove the RH front wheel and tire. Refer to: Wheel and Tire .

4.

Remove the retainers and the underbody shield.

GFD16448

Courtesy of FORD MOTOR COMPANY

5.

If equipped, remove the retainers and the underbody shield.

GFD16036

Courtesy of FORD MOTOR COMPANY

6.

Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING - 2.7L EcoBoost (238kW/324PS).

7.

Remove the lower air cleaner outlet pipe RH. Refer to: AIR CLEANER OUTLET PIPE RH .

8.

Loosen the clamps and then remove the lower RH - CAC intake pipe.

GFD19651

Courtesy of FORD MOTOR COMPANY

9.

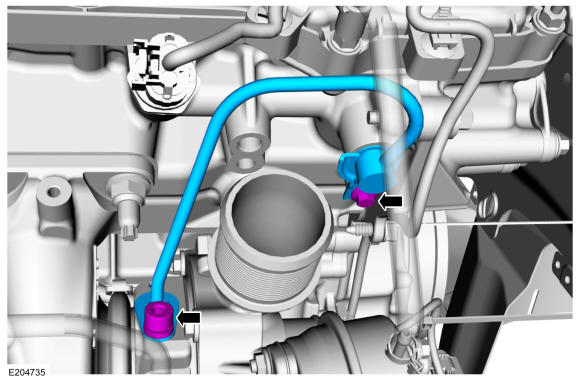

Remove the TC oil supply tube bolts and then remove the TC oil supply tube.

GFD16703

Courtesy of FORD MOTOR COMPANY

10.

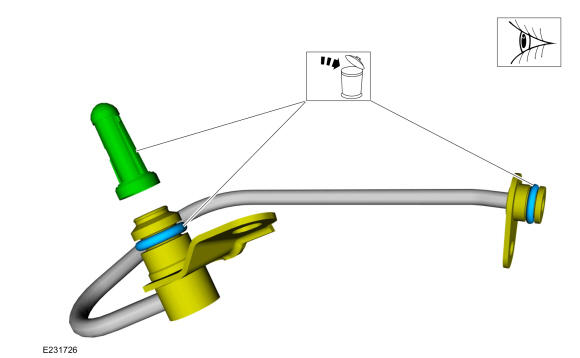

NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area.
Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

Remove and discard the turbocharger oil supply tube O-ring seals and the turbocharger oil supply tube oil filter.

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

GFD19652

Courtesy of FORD MOTOR COMPANY

11.

Remove the catalytic converter RH. Refer to: CATALYTIC CONVERTER RH - 2.7L EcoBoost (238kW/324PS).

12.

Remove the turbocharger coolant return tube bolt, then disconnect the turbocharger coolant return tube and position out of the way.

GFD19625

Courtesy of FORD MOTOR COMPANY

13.

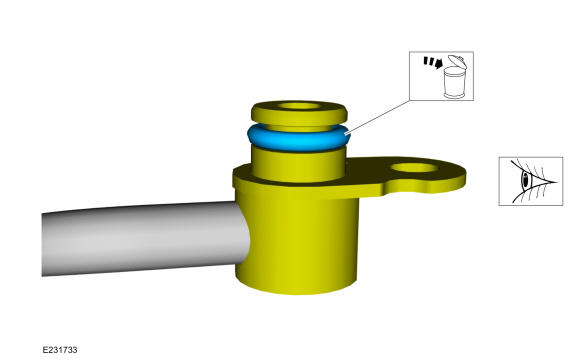

NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area.
Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

Remove and discard the turbocharger coolant return tube O-ring seal.

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

GFD19627

Courtesy of FORD MOTOR COMPANY

14.

Disconnect the clamp and the TC wastegate control hose.

GFD16707

Courtesy of FORD MOTOR COMPANY

15.

NOTE: AWD (all-wheel drive) is shown in illustration, FWD (front wheel drive) is similar.

Remove the turbocharger oil return tube retainers and then remove the turbocharger oil return tube.

GFD16708

Courtesy of FORD MOTOR COMPANY

16.

NOTE: Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage.
Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

NOTE: Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

Remove and discard the turbocharger oil return tube O-ring seal.

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

GFD19638

Courtesy of FORD MOTOR COMPANY

17.

Remove and discard the TC oil return tube tube-to-engine block gasket.

GFD16670

Courtesy of FORD MOTOR COMPANY

18.

Remove the TC coolant supply tube bolt.

GFD16709

Courtesy of FORD MOTOR COMPANY

19.

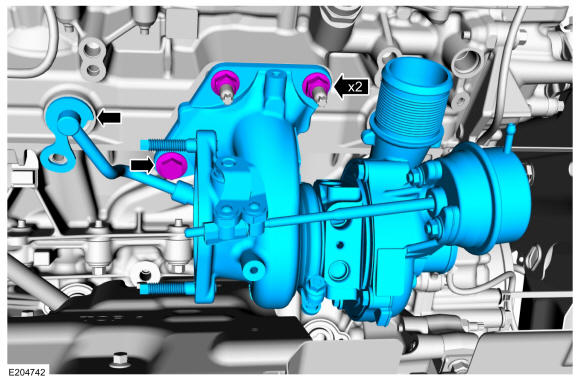

NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

Remove the TC retainers and then remove the TC.

GFD16710

Courtesy of FORD MOTOR COMPANY

20.

NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

Remove and discard the turbocharger coolant return tube O-ring seal.

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

GFD19641

Courtesy of FORD MOTOR COMPANY

21.

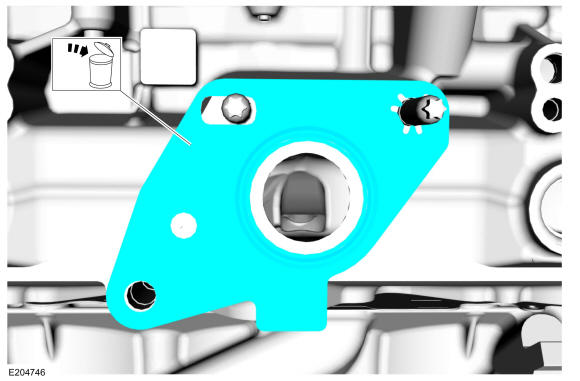

Remove and discard the TC gasket.

GFD16711

Courtesy of FORD MOTOR COMPANY

22.

Remove the TC mounting studs if they need to be removed.

GFD16712

Courtesy of FORD MOTOR COMPANY

23.

Remove the TC exhaust flange studbolts if they need to be removed.

GFD19653

Courtesy of FORD MOTOR COMPANY
