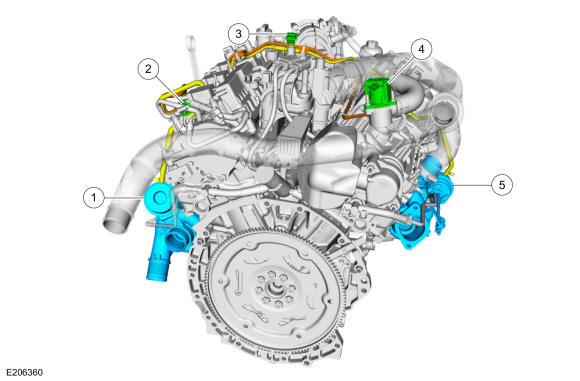

Turbocharger - Component Location
2.7L EcoBoost
| Item | Description |
|---|---|
| 1 | TC - LH |
| 2 | TC wastegate regulating valve solenoid |
| 3 | TC wastegate vacuum sensor |
| 4 | TC bypass valve assembly |
| 5 | TC - RH |

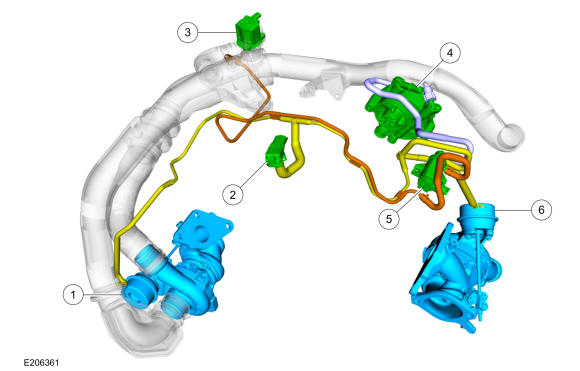

2.7L EcoBoost Turbocharger Controls
| Item | Description |
|---|---|
| 1 | TC wastegate activator RH |
| 2 | TC wastegate vacuum sensor |
| 3 | TC bypass valve assembly |
| 4 | Pump assembly vacuum |
| 5 | TC wastegate regulating valve solenoid |
| 6 | TC wastegate activator LH |
