Turbocharger Oil Supply Tube - RH: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING
  2. G09570906
  3. Detach the 2 brake booster vacuum hose retainers from the strut tower brace.
    G09571025
  4. Remove the 4 nuts and the strut tower brace
    G09571026
    • Disconnect the LH turbocharger bypass valve electrical connector and the turbocharger bypass valve hose.
    • Remove the turbocharger wastegate regulating valve hose from the RH Charge Air Cooler (CAC) tube.
    • Remove the RH CAC tube nut from the intake manifold.
      G09571027
    • Loosen the clamp and remove the RH CAC tube.
    • Disconnect the RH turbocharger bypass valve electrical connector.
    • Disconnect the RH turbocharger bypass valve hose.
    • Loosen the clamp and remove the RH CAC tube from the RH turbocharger.
      G09571028
  7. Detach the HO2S  electrical connector and remove the nut and HO2S  connector bracket from the engine front cover.
    G09571029

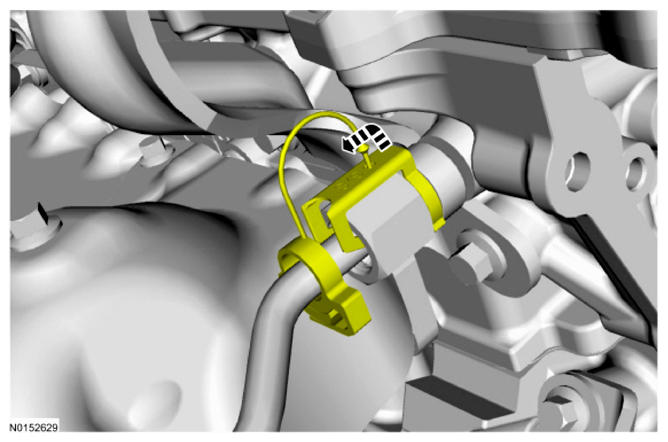

  8. G09571030
  9. Refer to FUEL SYSTEM - GENERAL INFORMATION

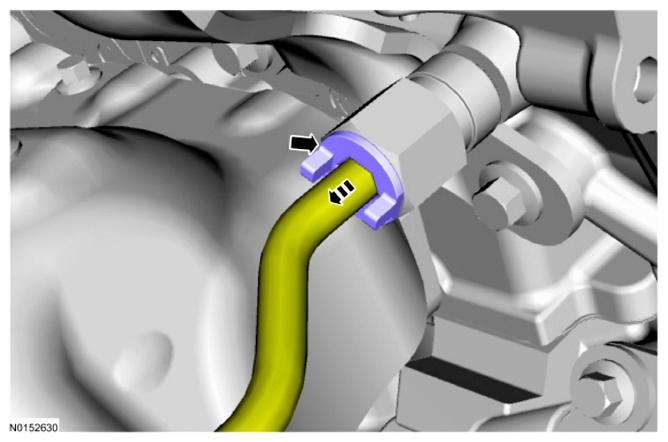

    G09571031
  10. Remove the RH engine lifting eye and the 2 bolts.
    G09571032
  11. Remove the RF  tire. Refer to WHEELS AND TIRES
  12. G09571033
  13. G09571034
