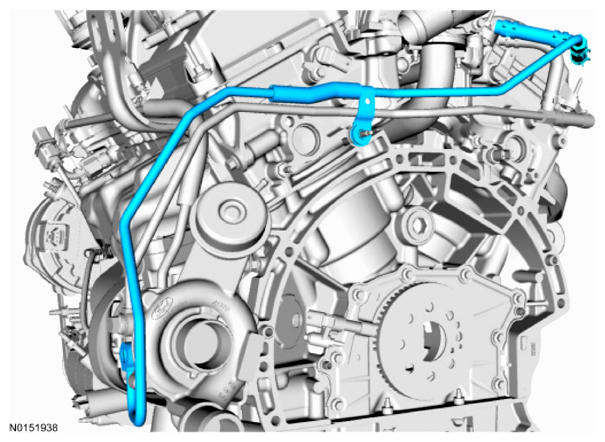

Turbocharger Coolant Supply Tube - LH: Installation

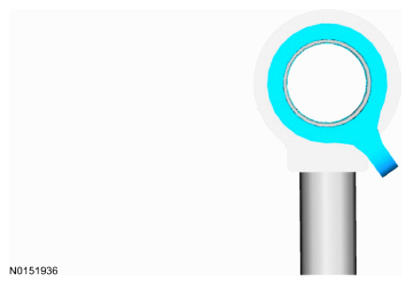

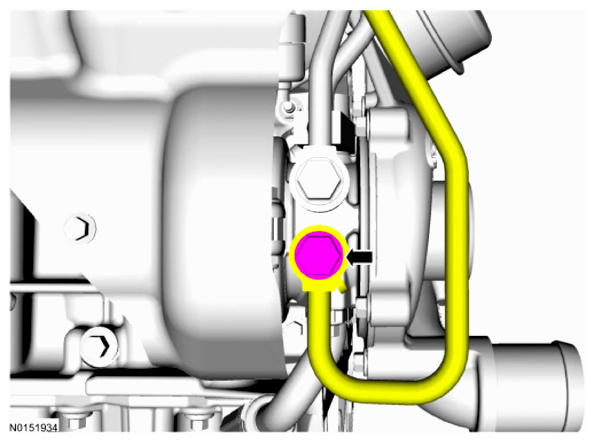

- Install a new turbocharger coolant tube linked sealing washer.
- Tighten to 40 Nm (30 lb-ft).

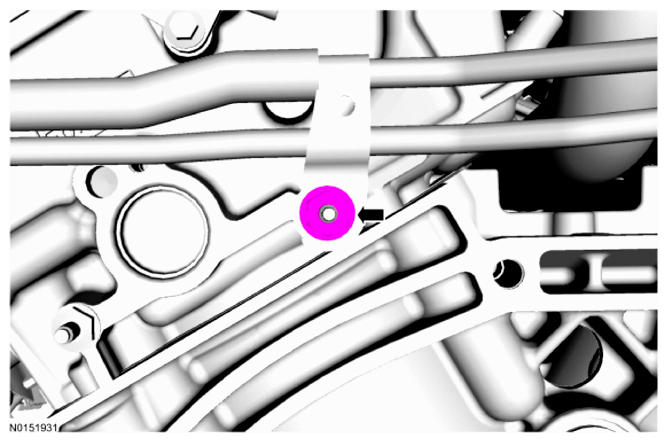

- Tighten to 12 Nm (107 lb-in).
-

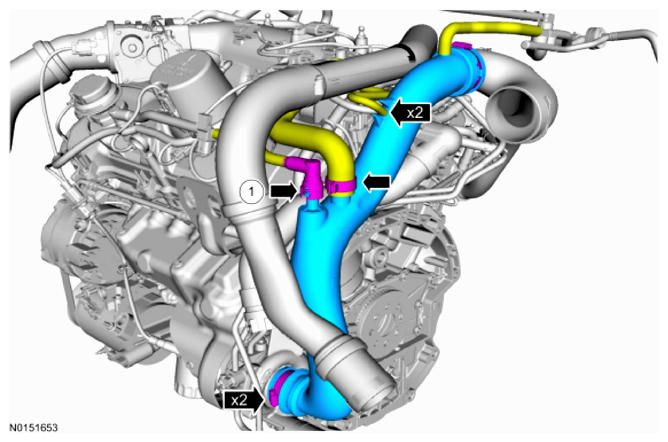

- Refer to
FUEL SYSTEM - GENERAL INFORMATION
- Refer to
FUEL SYSTEM - GENERAL INFORMATION
- Instal the air cleaner assembly and the air cleaner outlet tube. Refer to INTAKE AIR DISTRIBUTION AND FILTERING
- Fill the cooling system. Refer to ENGINE COOLING
- If equipped.
