Wheel Knuckle - FWD: Installation

All vehicles

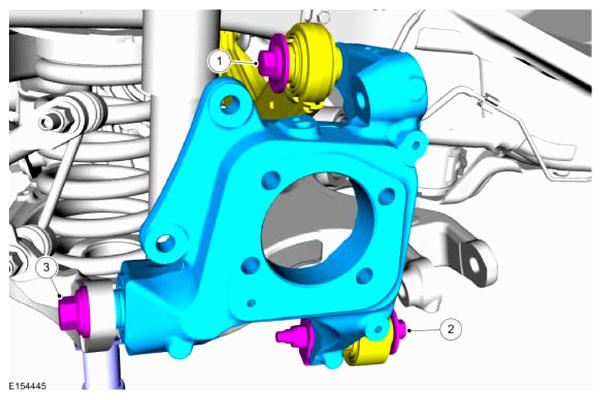

1. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

   Torque:

   1. 136 lb.ft (185 Nm)
   2. 76 lb.ft (103 Nm)
   3. 184 lb.ft (250 Nm)
2. Refer to: LOWER ARM VERTICAL LINK .

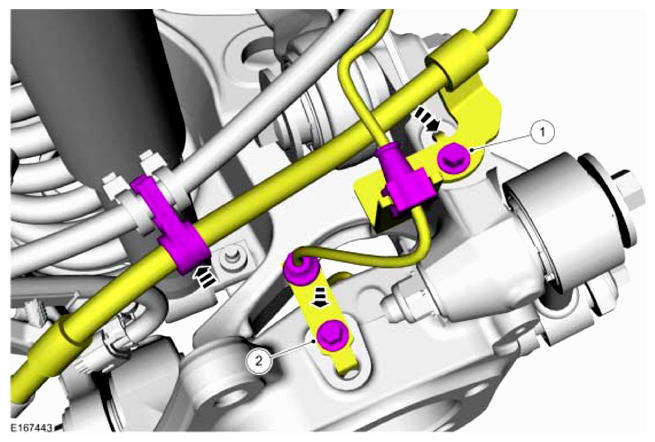

   Vehicles with bearing mounted wheel speed sensor

3. Torque:
   1. 124 lb.in (14 Nm)
   2. 80 lb.in (9 Nm)

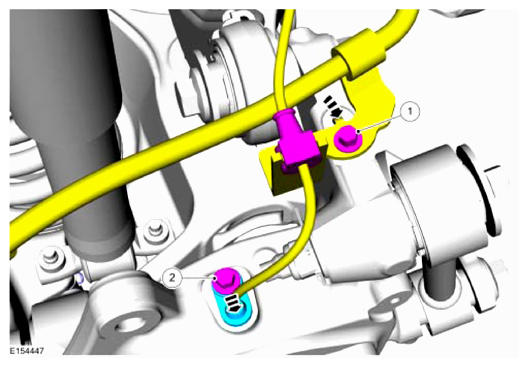

   Vehicles with knuckle mounted wheel speed sensor

4. Torque:
   1. 124 lb.in (14 Nm)
   2. 80 lb.in (9 Nm)

   All vehicles

5. Refer to: WHEEL BEARING AND WHEEL HUB - VEHICLES WITH: FWD .
6. Refer to: REAR TOE ADJUSTMENT .
