Wheel Bearing and Wheel Hub - AWD: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
  1. Refer to: WHEEL AND TIRE .

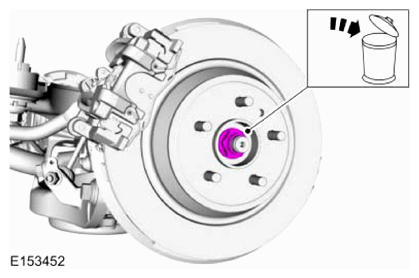

  2. Discard the specified component. Follow local disposal regulations.
    G08632049

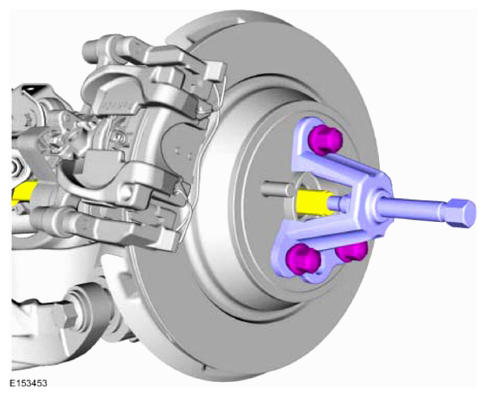

  3. Use Special Service Tool: 205-D070 (D93P-1175-B) Remover, Front Wheel Hub  .
    G08632050
  4. Refer to: BRAKE DISC .

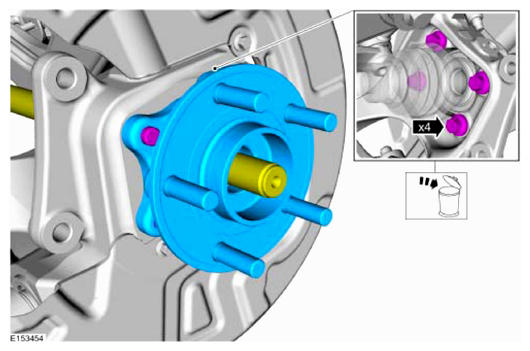

  5. Discard the specified component. Follow local disposal regulations.
    G08632051
