Wheel Bearing and Wheel Hub - AWD: Installation

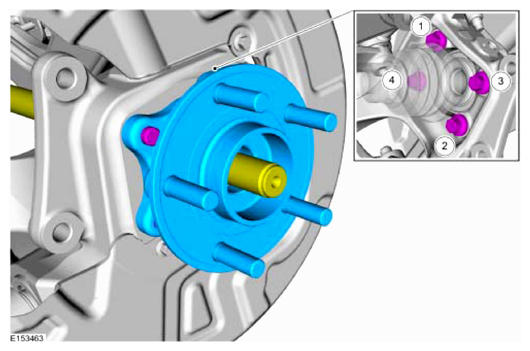

  1. Torque:  98 lb.ft (133 Nm)
    G08632052
  2. Refer to: BRAKE DISC .

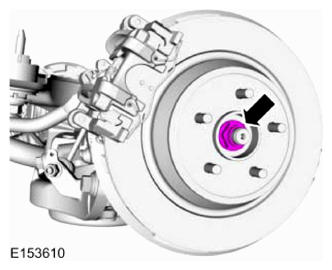

  3. Torque:  148 lb.ft (200 Nm)
    G08632053
  4. Refer to: WHEEL AND TIRE .
