Toe Link: Installation

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

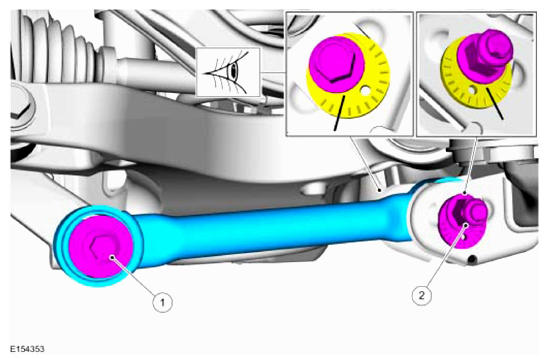

NOTE: Align reference marks made during removal.

Visual check.

Torque:
1. 76 lb.ft (103 Nm)
2. 129 lb.ft (175 Nm)
Refer to: WHEEL AND TIRE .
Refer to: REAR TOE ADJUSTMENT .
