Home >> Ford >> 2014 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension -- (Except Hybrid) >> Removal And Installation >> Rear Stabilizer Bar >> Installation

Rear Stabilizer Bar: Installation

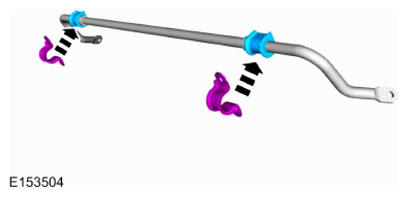

  1. NOTE: Apply water to the brackets to aid in installation.
    G08632058

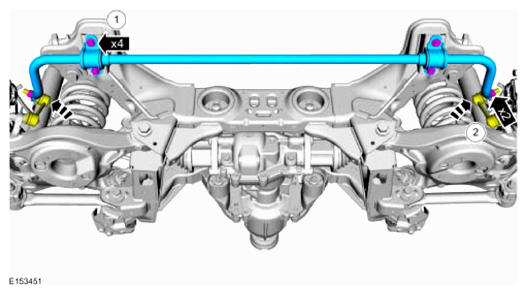

    1. Torque:  52 lb.ft (70 Nm)
    2. Torque:  76 lb.ft (103 Nm)
      G08632059
