Rear Stabilizer Bar Link: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: JACKING AND LIFTING - OVERVIEW .
  2. NOTE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints and boots may occur.
    NOTE: Make sure that the ball joint ball does not rotate.
    • Torque:  76 lb.ft (103 Nm)

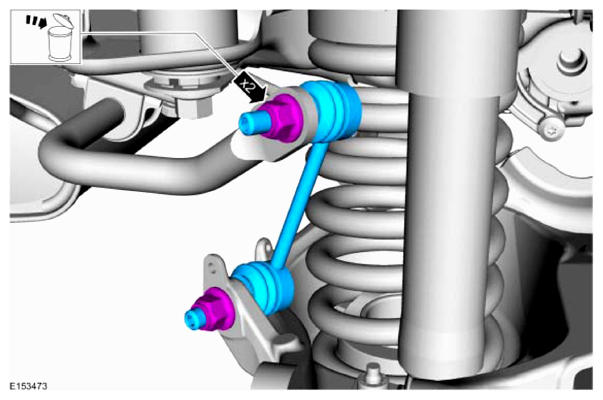

      G08632060
