Lower Arm: Installation

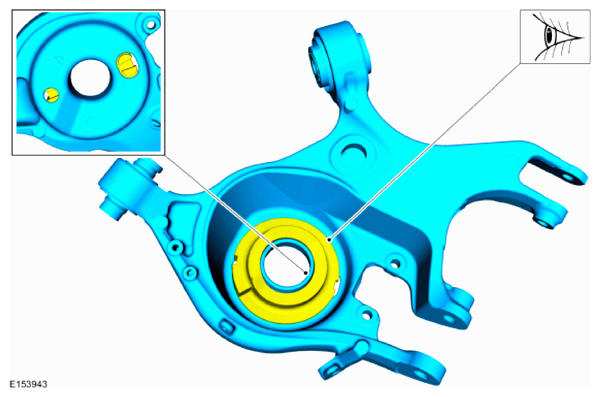

  1. Visual check.
    G08632069

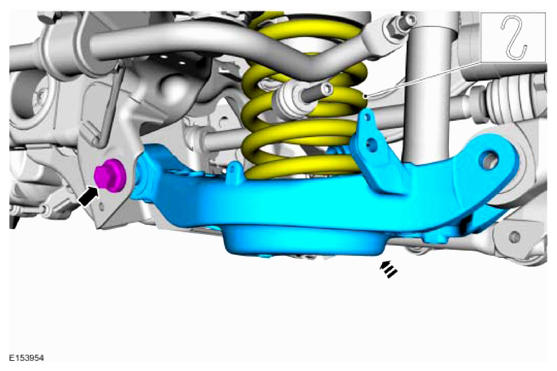

  2. Relocate and support the component. Finger tight at this stage.
    G08632070
  3. Finger tight at this stage.
    G08632071

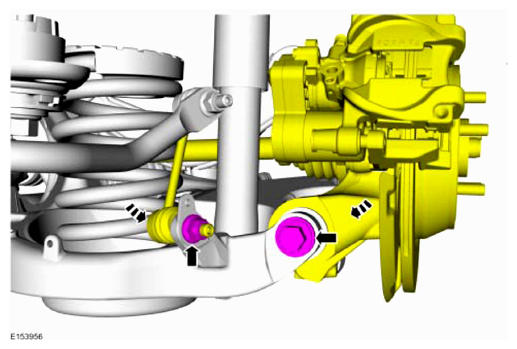

  4. Finger tight at this stage.
    G08667923

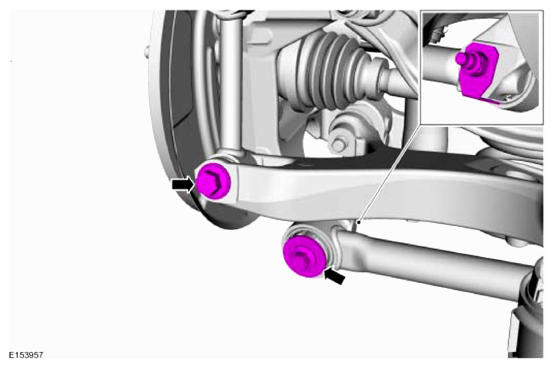

  5. Finger tight at this stage.
    G08632073

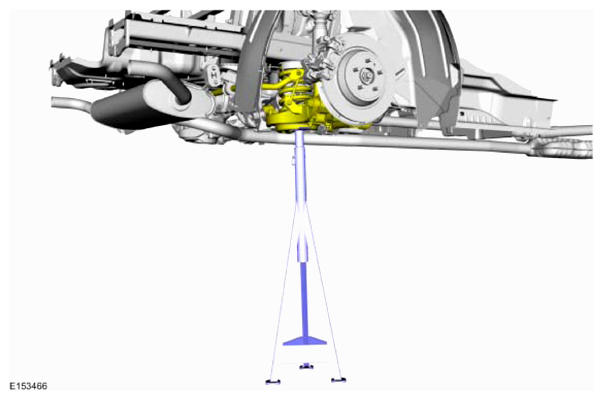

  6. Use the General Equipment: Vehicle/Axle Stands
    G08632061
  7. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

    Torque:  166 lb.ft (225 Nm)

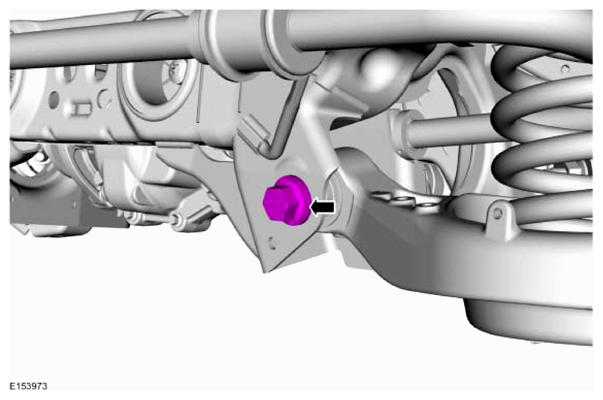

    G08632075
  8. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

    Torque:  166 lb.ft (225 Nm)

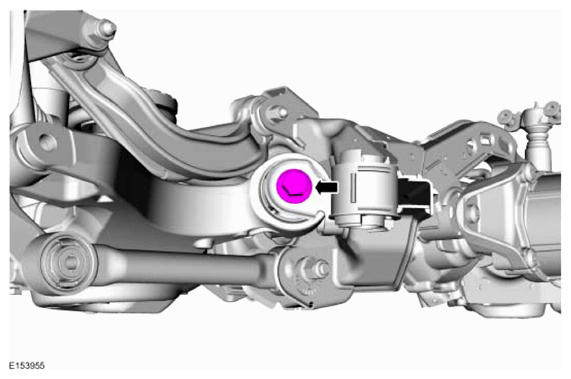

    G08632071

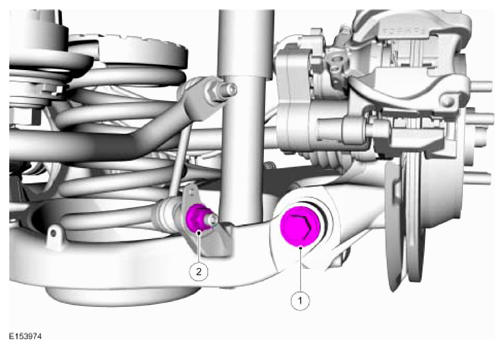

  9. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

    Torque:

    1. 184 lb.ft (250 Nm)
    2. 76 lb.ft (103 Nm)
      G08632077

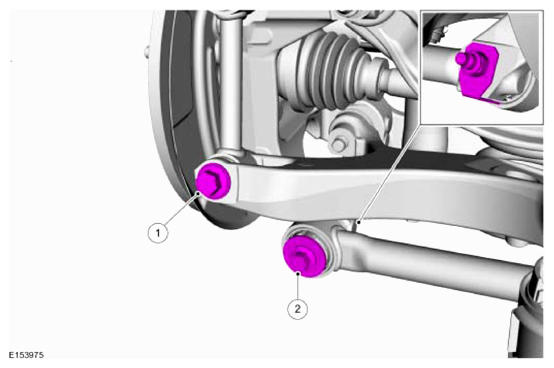

  10. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

    Torque:

    1. 129 lb.ft (175 Nm)
    2. 76 lb.ft (103 Nm)
      G08632078

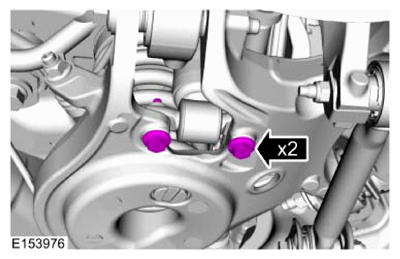

  11. Torque:  35 lb.ft (48 Nm)
    G08632079
  12. Refer to: WHEEL AND TIRE (204-04A Wheels and Tires, Removal and Installation).
  13. Refer to: REAR CAMBER ADJUSTMENT .
